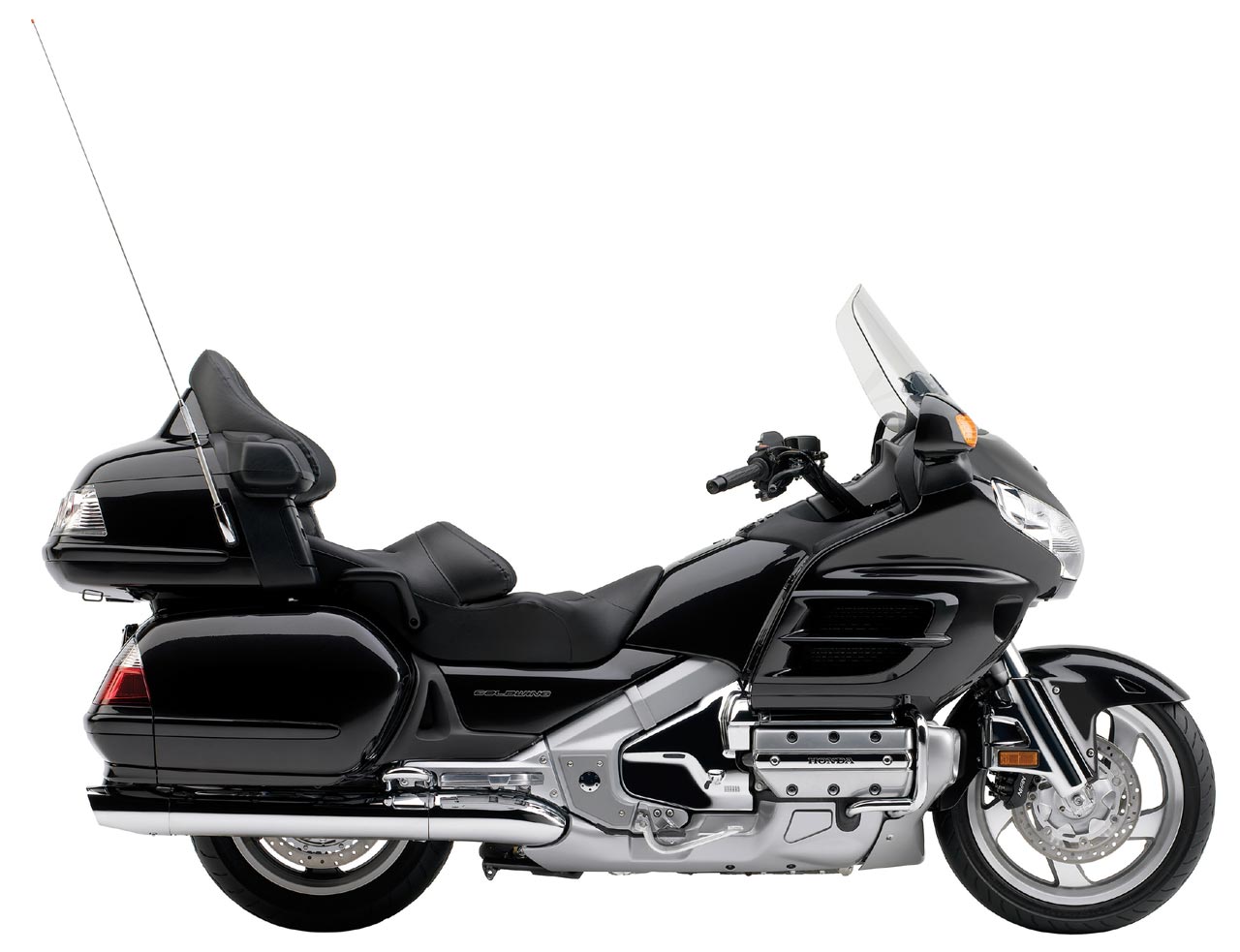

Today’s GL1800 is a
class-leading machine which adds
fine handling to the seamless
torque of that glorious flat-six
engine. The 30th Anniversary
Edition of the world-famous Gold
Wing celebrates the whole
history of the best
horizontally-opposed motorcycles
ever by carrying three 30th
Anniversary emblems on the front
cowl, rear top box and on the
lower cockpit control panel.
Chrome-plated ‘Gold Wing’
emblems also feature on the side
covers of the machine, while the
Wing’s large LCD information
panel features a unique
commemorative display during
both start-up and shut-down
cycles. The cost of the latest
GL1800 Gold Wing is just £16,999
on the road.
ENGINE
Engine Type 1832cc liquid-cooled
horizontally opposed
six-cylinder
Bore and Stroke 74.0mm x 71.0mm
Compression Ratio 9.8:1
Valve Train SOHC; two valves per
cylinder
Carburetion Programmed Fuel
Injection (PGM-FI) with
automatic choke
Ignition Computer-controlled
digital with three-dimensional
mapping
DRIVE TRAIN
Transmission Five-speed
including overdrive, plus
electric reverse
Final Drive Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension 45mm cartridge
fork with anti-dive system,
5.5-inch travel
Rear Suspension Pro-Arm
single-side swingarm with
Pro-Link single shock with
computer controlled
spring-preload adjustment with
two memory presets; 4.1-inch
travel
Front Brakes Dual full-floating
296mm discs with LBS
three-piston calipers with
Anti-Lock Braking System® (ABS®)
Rear Brake Single ventilated
316mm disc with LBS three-piston
caliper with Anti-Lock Braking
System® (ABS®)
Front Tire 130/70R-18 Rear Tire
180/60R-16
DIMENSIONS
Rake 29.25 degrees
Trail 109mm (4.3 inches)
Wheelbase 66.6 inches
Seat Height 29.1 inches
Dry Weight 799.0 pounds
Fuel Capacity 6.6 gallons
OTHER
Available Colours Black, Red,
Candy Red, Magenta Metallic,
Titanium
